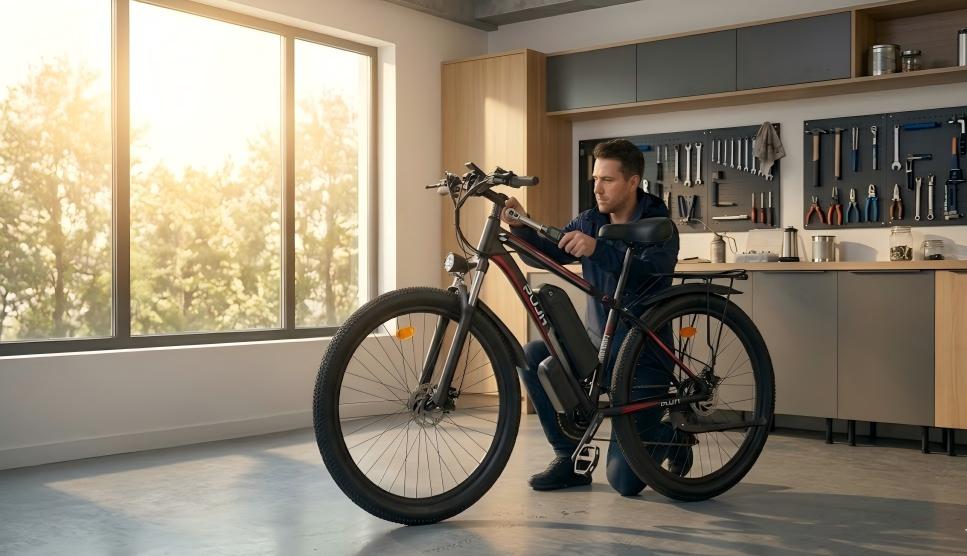

The PUJH PU149 road electric bicycle with a torque of 70Nm was adjusted by someone using a torque wrench before riding.

Protect Your Ride: The Complete Class 3 E-Bike Tune-Up and Care Schedule

By Alex M. | Lead Product & Micro-Mobility Engineer at PUJH Updated March 2026

  • About the Author: Alex M. is a LEVA-certified electric vehicle technician. Having logged over 15,000 miles commuting on high-speed electric bicycles, he understands exactly how weather, 60Nm of torque, and daily urban mileage degrade mechanical components over time.

Let’s address an uncomfortable truth that many budget e-bike brands gloss over: a Class 3 electric road bike isn't just a bicycle with a battery attached; it’s a sophisticated, high-performance machine.

When riding a traditional analog bike, you might average 12 to 15 mph. At that speed, your body weight combined with a 30 lb frame generates a highly manageable amount of kinetic energy. However, the moment you upgrade to a premium Class 3 e-bike like the PUJH PU1, the physics of your commute fundamentally change.

You are now piloting a 72 lb machine, driven by a responsive 60Nm high-torque motor, capable of cruising seamlessly in traffic at 28 mph. Because kinetic energy increases exponentially with velocity, doubling your speed means you are subjecting your bike to nearly four times the mechanical force. While the PU1 features a heavily over-engineered chassis designed to absorb these dynamic loads, that energy inevitably takes a toll on your high-friction wear components—specifically your brake pads, drivetrain, and tires.

 Therefore, if you treat a high-speed commuter e-bike like a casual garage toy that only sees an annual tune-up, you are guaranteeing premature drivetrain wear, degraded battery range, and potentially dangerous mechanical failures. As the final installment in our [Ultimate Guide to Electric Road Bikes], this comprehensive breakdown covers the exact DIY maintenance protocols, drivetrain cleaning procedures, and professional servicing intervals every rider must follow to ride safely and protect their investment.

1. Master Your Stopping Power: Professional Brake Maintenance

Cruising at 28 mph is exhilarating; being unable to stop at 28 mph is a liability. Because e-bikes carry significantly more kinetic energy due to their increased mass (motor, battery, and reinforced frame), your friction components work harder than those on a traditional bicycle. The PUJH PU1 is engineered with heavy-duty 160mm mechanical disc brakes integrated with electronic motor cut-off sensors, ensuring that the moment you pull the lever, the drive system stops competing with your braking force.

The Science of "Bedding-In" (Burnishing)

Whether you are unboxing a brand-new PU1 or installing fresh pads, you must perform a bed-in process before your first serious commute. This isn't just a suggestion—it’s a mechanical necessity. Proper bedding-in transfers a uniform layer of friction material from the pad onto the stainless steel rotor. To do this:

Mechanic adjusting the tension on 160mm mechanical disc brakes to maximize stopping power and brake pad life for the PU1 road ebike.

  1. Accelerate to approximately 15 mph.

  2. Apply firm, steady pressure to slow down to a walking pace.

  3. Crucial: Do not come to a complete stop, as this can cause uneven material buildup (resulting in "brake judder").

  4. Repeat this 10–15 times per brake.

Pro Tip: Skipping this step is the #1 cause of "brake squeal" and premature glazing. A well-bedded rotor maximizes the coefficient of friction and extends component life.

The 500-Mile Professional Inspection

For the high-frequency urban commuter, we recommend a deep-dive inspection every 500 miles. Keep an eye out for these two critical indicators:

  • The 1mm Rule (Visual Check): Use a flashlight to peer into the brake caliper. If the friction material (the "meat" on the metal backing plate) is thinner than a dime (approx. 1mm), replace it immediately. Running thin pads leads to heat fade and reduced hydraulic/mechanical leverage.

  • Acoustic Warnings: If you hear a harsh, metal-on-metal grinding, stop riding. You have likely depleted the pad material and are "scoring" the rotor. This is a safety hazard that will require a more expensive rotor replacement.

The PUJH Advantage: We recognize that Class 3 speeds mean higher maintenance intervals. That’s why every PU1 ships with a complimentary spare set of high-performance disc pads to keep you on the road longer.

Navigating urban traffic at 28 mph requires more than just good brakes,it is also necessary to understand the speed regulations and safety rules for electric bicycles on Class III roads. Review our comprehensive breakdown of [Local E-Bike Safety Regulations & Speed Tiers] to ensure your route is compliant.

2. Taming the 60Nm Beast: Drivetrain Dynamics & Precision Chain Care

The PUJH PU1 isn't just an e-bike; it’s a high-performance machine. With a rear hub motor churning out 60Nm of torque and hitting 1,500W of peak power.Therefore, such high-intensity work will put considerable stress on the mechanical components of the electric bicycle.. While the hub motor drives the rear wheel directly, your pedaling input still flows through a Shimano 21-speed drivetrain. Even though the motor bypasses the chain, the sheer weight of a high-powered e-bike and the aggressive acceleration curves put a unique "tensile tax" on your links.

The Invisible Enemy: "Chain Stretch" and Pitch Elongation

In the world of high-output e-bikes, "chain stretch" is a bit of a misnomer. The metal plates don't actually stretch; rather, the pins and rollers wear down, causing the "pitch" (the distance between links) to increase. This elongation is the silent killer of drivetrains. When a chain is out of spec, it no longer sits flush in the valleys of your cassette teeth. Instead, it rides up on the points, rapidly "hooking" your gears and causing slippage. This leads to ghost-shifting and dangerous pedaling misfires under load.

Using a chain wear indicator tool to measure drivetrain stretch on a high-torque 60Nm pu1 road electric bicycle to prevent gear slipping.

  • Pro Tip: Invest in a Chain Wear Indicator Tool (often called a CC-3.2).

  • The Threshold: For an 8-speed or 21-speed system, if the tool shows 0.75% wear, replace the chain immediately. Waiting until it hits 1.0% means you’ll likely have to replace the entire Shimano cassette as well—an expensive oversight.

Friction Management: Why Lubrication is Non-Negotiable

A dry or gritty chain is more than an audible nuisance; it’s a parasitic drain on your efficiency. Mechanical friction in the drivetrain can shave miles off your battery range and accelerate metal-on-metal erosion. However, not all lubes are created equal. You must match your chemistry to your geography.

Choosing Your Formula: Wet vs. Dry

To maximize the lifespan of your PU1, select a lubricant based on your local ecosystem:

  • Dry Lube (Wax/Teflon Based): Ideal for arid climates like Los Angeles or Phoenix. These go on wet but dry to a waxy film that won't attract dust or sand. If you touch the chain, it should feel clean.

  • Wet Lube (Oil Based): Essential for the relentless mist of Seattle or Portland. These are high-viscosity oils that won't wash away in a downpour. The trade-off? They attract road grime, requiring more frequent deep cleans.

The Pro-Level Application Method

The most common amateur mistake is "spraying and praying." Never use aerosol WD-40 on your chain; it is a degreaser/solvent that strips away the factory grease deep inside the rollers. Lubrication belongs inside the rollers, not on the outside. A properly maintained chain should look dry to the eye but remain buttery smooth at the joints.

  1. Degrease First: Ensure the chain is free of old grit.

  2. Precision Application: Apply one drop of bicycle-specific lubricant to each individual roller as you back-pedal.

  3. The "Set" Period: Let the lube capillary into the internal pins for at least 10–15 minutes.

  4. The Wipe Down: This is the most critical step. Take a clean microfiber rag and aggressively wipe the exterior of the chain.

4. Battery Chemistry: Preserving the 48V Powerhouse

Your 48V 17.5Ah Lithium-ion (Li-ion) battery is the high-voltage heart of your electric road bicycle—and arguably its most critical investment. While modern battery management systems (BMS) offer significant protection, the longevity of these cells is dictated by chemical stability. With meticulous care, a premium pack can sustain 800 to 1,000 full discharge cycles—providing roughly 3 to 5 years of peak performance for a daily commuter. Conversely, neglect or improper thermal management can degrade its capacity by 30% or more in a single season.

The "Goldilocks Zone": The 20/80 Rule

Lithium-ion chemistry experiences the least amount of "voltage stress" when it isn't pushed to its physical limits. For daily riding, aim to keep your state-of-the-art 48V pack within the 20% to 80% charge range.

  • Avoid Deep Discharges: Running your battery to a literal 0% (Low Voltage Cutoff) triggers chemical instability and increases internal resistance.

  • The 100% Myth: While you may want maximum range for a long weekend trek, leaving a battery at a resting voltage of 100% (roughly 54.6V for most 48V systems) causes the electrolyte to decompose faster. If you must charge to 100%, try to time it so you begin your ride shortly after the charger turns green.

Thermal Dynamics and Winter Survival

Temperature is the primary catalyst for battery degradation. If your local climate drops below freezing, your maintenance routine must shift indoors.

  • The Danger of Cold-Charging: Never plug in your battery if it has been sitting in a freezing garage. Charging a Li-ion cell when its internal temperature is below 32°F (0°C) causes lithium plating on the anode. This is an irreversible chemical failure that permanently slashes your range and, in extreme cases, can lead to internal short-circuiting. Always allow your battery to acclimate to room temperature for at least two hours before charging.

  • Optimal Hibernation (Long-Term Storage): If you are hanging up the bike for the winter, do not store the battery at 100% or 0%. The "sweet spot" for chemical dormancy is between 50% and 60%. Check the voltage every 4-6 weeks; if it dips below 40%, give it a short "top-up" to keep the cells healthy.

Heat is the Silent Killer

While cold stops charging, heat kills capacity. Avoid storing your bike in direct sunlight or in a hot car trunk during mid-summer. High ambient temperatures accelerate the parasitic reactions within the cells, leading to "capacity fade" that no amount of software updates can fix.

Internal Link: Want to calculate the exact ROI of your e-bike? Check out our deep-dive financial analysis: [How a Healthy Battery Saves You Thousands vs. a Commuter Car].

5. Master the Art of the E-Bike Wash: Protecting Your PUJH PU1’s Performance

While the PUJH PU1 boasts a robust IP54 ingress protection rating—meaning it’s engineered to withstand heavy rain and grit-heavy road spray—it is not an amphibious vehicle. In the world of micro-mobility, high-voltage electrical systems and pressurized water are a recipe for internal corrosion.

To preserve the lifespan of your hub motor and internal circuitry, you must move away from "car wash" logic. Follow these professional maintenance protocols to keep your ride pristine without risking a catastrophic short circuit.

Phase 1: De-Energize and Isolate

Before a drop of water touches the frame, you must de-energize the system.

  • Power Down: Ensure the LCD controller is completely off.

  • Battery Removal: Extract the lithium-ion battery from the frame. This not only protects the cells but also allows you to inspect the mounting tray for debris.

  • Seal the Terminals: If your specific model has exposed terminal pins, consider covering them with a dry microfibre cloth or a rubber terminal cap during the process.

Phase 2: The "Low-Pressure" Mandate

The single most common cause of e-bike failure is the high-pressure power washer. Standard pressure washers (and even high-set garden nozzles) can exert enough force to bypass the rubber gaskets protecting your motor bearings, torque sensors, and bottom bracket. Once water is trapped inside these sealed components, it cannot evaporate, leading to "silent" oxidation that kills the electronics weeks after the wash. Stick to a gentle, gravity-fed rinse.

Phase 3: Technical Agitation (The Bucket Method)

Ditch the harsh industrial degreasers which can strip the protective finish off the 6061 aircraft-grade aluminum frame.

  • Solution: Use a pH-neutral, bicycle-specific wash or a highly diluted mild detergent.

  • Tools: Use a soft-bristle brush for the drivetrain and a plush sponge for the frame and fenders.

  • Focus Areas: Pay close attention to the cooling fins on the motor casing and the rims. Keeping these areas free of "caked" mud ensures better heat dissipation during long climbs.

Phase 4: The Critical Drying Protocol

Water left sitting in recessed bolt heads or near electrical ports is a long-term liability.

  1. The Gravity Shake: Lift the bike a few inches and let it bounce gently on its tires. This "shakedown" dislodges water trapped in the cable internal routing ports.

  2. Contact Point Inspection: Use a clean, dry microfiber towel to wipe down the battery interface and the LCD display housing.

  3. Evaporation Time: Never reinstall the battery immediately. Allow the bike to air-dry in a shaded, well-ventilated area for at least 30 to 60 minutes to ensure any residual moisture has evaporated from the connectors.

Pro Tip: While your bike is drying, it’s the perfect time to apply a high-quality dry-lube to your chain. A clean bike is fast, but a clean and lubricated bike is silent.

6. The "Pre-Flight" Torque Audit: Defeating Vibration

Aviation mechanics perform rigorous pre-flight inspections for one simple reason: vibration is the enemy of mechanical integrity. On an e-bike, the stakes are remarkably similar. Between the high-frequency vibrations of a hub motor and the impact forces of cruising over cracked asphalt at 28 mph, hardware will inevitably settle and loosen over time.

To maintain structural safety, perform a 5-minute torque audit every 90 days (or more frequently if you commute on rough terrain). Use a high-quality set of hex keys or, ideally, a calibrated torque wrench to ensure the following critical points meet manufacturer specifications:

The Cockpit: Stem and Handlebars

Modern e-bike handlebars offer wide-leverage steering, which provides excellent control but exerts significant torsional stress on the stem faceplate.

  • The Risk: Uneven bolt tension can lead to "bar slip" during a sudden braking maneuver or while hopping a curb.

  • The Fix: Use a "cross" or "X" pattern when tightening faceplate bolts to ensure even pressure across the handlebar surface.

The Foundation: Axle Security

Your axles are the only things keeping your wheels married to the frame. For e-bikes with front hub motors or quick-release (QR) skewers, this is a non-negotiable safety check.

  • Technical Tip: Ensure the axle is fully seated in the dropouts before tightening. If your bike uses thru-axles, check that they are snug and that any locking levers are properly oriented to avoid snagging debris.

The Payload: Rack and Fender Mounts

Commuter accessories are notorious for "rattle-loosening." While a vibrating fender is a nuisance, a loose rear rack is a legitimate hazard.

  • The Danger: A failing rack bolt can cause your panniers—and your expensive gear—to shift into the spokes or drop into traffic.

  • Pro Tip: If you find a specific bolt frequently coming loose, apply a small drop of blue threadlocker (Loctite 242) to the threads to help it resist vibration without seizing the hardware.

Conclusion: Preventive Maintenance is Your Highest ROI

Investing in a high-performance road ebike like the PUJH PU1 is more than a purchase—it’s a definitive lifestyle upgrade. It transforms taxing commutes into high-efficiency transits, eliminates the overhead of fossil fuels, and provides the torque necessary to neutralize the most aggressive urban inclines.

However, sustained peak performance is a product of mechanical synergy. When you dedicate 15 minutes a week to auditing your tire pressure (PSI), degreasing the drivetrain, and monitoring brake pad wear, you aren’t just performing "chores." You are executing a precision maintenance protocol that:

  • Preserves Asset Value: Prevents premature component failure and protects your long-term capital investment.

  • Optimizes Efficiency: Reduces rolling resistance and mechanical drag, extending your battery’s range-per-charge.

  • Ensures Tactical Safety: Guarantees reliable stopping power and predictable handling in high-stakes urban traffic.

Respect the engineering, maintain the hardware, and the road remains yours to command.

[Need replacement parts, extra brake pads, or an upgrade? Shop PUJH E-Bike Accessories Today]

Frequently Asked Questions (FAQ)

Q: My rear wheel makes a "pinging" sound when I accelerate. What is it?

 A: When a 1500W peak motor engages, the twisting force on the rear wheel is immense. Over the first few hundred miles of a new bike's life, the metal spokes will naturally stretch and "settle." A pinging sound usually indicates loose spokes. Take the bike to a local professional bike shop to have the wheel "trued" and the spoke tension calibrated.

Q: Can I use automotive brake fluid on my PU1 brakes?

A: No. The PUJH PU1 utilizes mechanical disc brakes, which operate via a braided steel cable, not hydraulic fluid. If your brakes feel "spongy," you simply need to tighten the cable tension using the barrel adjuster on the brake lever or at the caliper pinch bolt.

Q: How do I know when I need to replace the entire 48V battery?

A: You will know it is time to replace the battery when you experience severe "voltage sag." If your fully charged display drops to 1 bar immediately when you twist the throttle on a hill, or if your total commuting range permanently drops from 50 miles down to 15 miles, the lithium cells have reached the end of their chemical lifespan.
