Mechanical vs Hydraulic Disc Brakes: Unlocking Your E-Bike's True Stopping Power

TL;DR

• Mechanical disc brakes rely on steel cables. They are budget-friendly and easy to tweak with basic tools, but demand stronger hand pressure and frequent manual adjustments to compensate for cable stretch and pad wear.

• Hydraulic brakes use a sealed fluid system for instant, frictionless stopping power. They self-adjust for pad wear, deliver buttery-smooth modulation, and provide superior safety for heavy e-bikes.

• If you ride a heavy cargo e-bike, hit speeds of 20-28 mph (Class 2 or 3), or tackle steep inclines, upgrading to a hydraulic setup is a critical safety investment.

Introduction: The E-Bike Braking Dilemma

Electric bikes are significantly heavier and faster than traditional bicycles. This means that if you are shopping for a new e-bike, you will inevitably face an ultimate ultimate debate: mechanical vs hydraulic disc brakes. Making the wrong choice can mean the difference between a confident,

Leveraging years of industry experience. PUJH will explore how they work, the distinct advantages of each, and how to choose the perfect setup for your riding style to ensure your next ride on a PUJH e-bike is as safe as it is thrilling.

2. What are Mechanical Disc Brakes?

Mechanical disc brakes are the traditional foundation of modern disc braking, highly favored in entry-level e-bikes for their simplicity and cost-effectiveness.

How They Work

This system relies entirely on physical tension. When you pull the brake lever, you pull a braided stainless steel cable housed inside a protective sleeve. This cable travels down to the wheel caliper, actuating a lever arm. That arm mechanically pushes a piston—usually just on the outboard side—forcing the brake pad against the spinning steel rotor. The rotor is effectively sandwiched between the moving pad and a stationary inboard pad.

The Force Path

hand pressure → brake lever → cable tension → caliper actuator → brake pads → rotor

3. Hydraulic Brakes: The High-Tech Upgrade

Hydraulic brakes represent the gold standard for e-bike safety. By replacing physical cables with fluid dynamics, these systems eliminate friction from the equation entirely.

The Fluid Dynamics

Hydraulic systems are completely sealed and filled with either mineral oil or DOT brake fluid. The brake lever on your handlebar acts as a master cylinder. When you squeeze it, a small plunger pushes fluid through the brake hose. According to Pascal’s Principle, this pressure cannot be compressed and is instantly transferred down to the caliper.

The Force Path

 hand pressure → brake lever → hydraulic pressure → caliper pistons → brake pads → rotor

2. Stopping Heavy Payloads at 28 MPH [Field Test Data]

Theories and physics provide a foundation, but real-world stress testing reveals the truth. At our facility, we routinely evaluate braking platforms under "Urban Assault" and heavy-duty overlanding conditions. These tests simulate high-demand scenarios: a 60V high-torque e-bike carrying a maximum payload (rider plus gear) exceeding 300 lbs.

In a controlled track environment, we measured the stopping distance from 28 mph (the upper limit of Class 3 e-bikes) to a dead stop. The results underscore the critical importance of hardware selection:

When a car door swings open in a congested bike lane or a pedestrian steps into traffic,. That 22-foot difference in stopping distance represents more than just a statistic—it is the definitive margin between a controlled, safe stop and a high-velocity collision. Therefore the high-performance hydraulics aren't a luxury; they are a fundamental safety requirement.

Besides brake mechanism, different brake pad materials also significantly affect braking performance. For a deeper understanding, read the article "The Ultimate Guide to Electric Bicycle Brakes," which explores the differences between resin and metal brake pads.

3. Thermal Capacity: Fighting Hydraulic Brake Fade on Downhills

When you ride a heavy e-bike down a long, steep incline, your brakes are converting kinetic energy into extreme heat.

With mechanical systems, as the caliper heats up,while the single-sided pad actuation generates uneven heat on the rotor, increasing the risk of rotor warping.

Premium hydraulic bike brakes act as a thermal management system. High-end 4-piston calipers hold more hydraulic fluid, which acts as a heat sink. While prolonged braking can eventually heat the fluid to its boiling point (causing "brake fade" where the lever pulls completely to the bar with no stopping power), high-quality mineral oil setups are engineered to withstand temperatures far exceeding what a typical urban commute will generate.

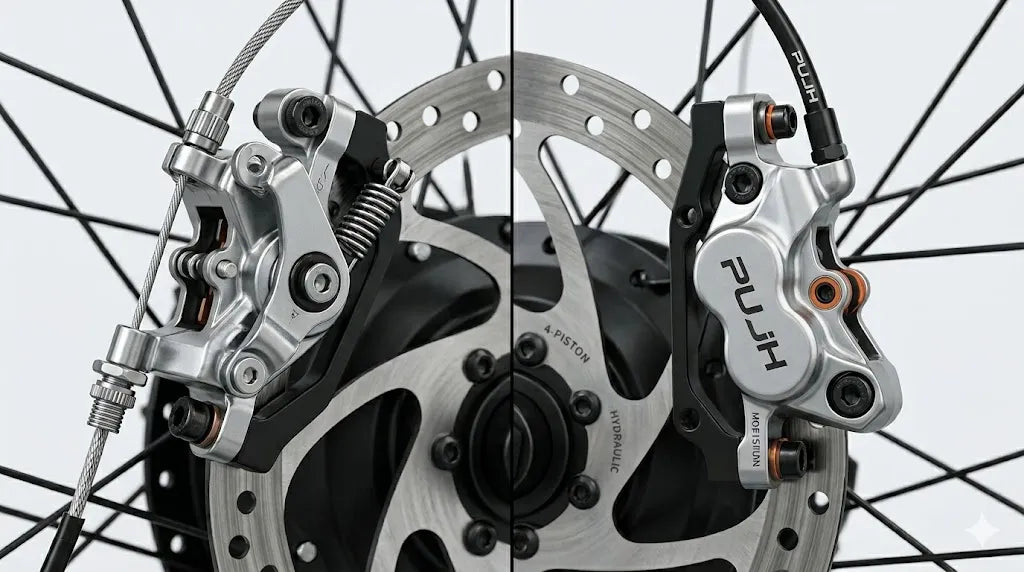

4. In-Depth Analysis: Mechanical vs Hydraulic Disc Brakes

To truly understand which system reigns supreme for your daily commute or weekend trail shredding, we need to break down the mechanical vs hydraulic disc brakes debate across four critical performance metrics.

Stopping Power

The sheer weight of an e-bike (often 60+ lbs) combined with speeds up to 28 mph means stopping power is non-negotiable. Mechanical disc brakes offer decent stopping power, but some energy is lost due to cable friction and stretching. You have to squeeze the lever quite hard to get maximum braking force.

Hydraulic systems, on the other hand, offer phenomenal, zero-loss power transfer. Because the fluid does not compress, every ounce of force you apply to the lever translates directly to the brake pads. This allows for rapid, secure stopping, even when flying down a steep hill on a heavy cargo e-bike.

Lever Feel and Linearity (Modulation)

"Modulation" is how well you can control the braking force between slightly rubbing the speed off and locking up the wheels entirely. Mechanical brakes tend to feel a bit stiff or "spongy" because of the friction of the steel wire rubbing inside its housing.

Hydraulic levers are famously buttery-smooth. They allow for incredible modulation. You can achieve maximum stopping power with just one finger (often called "one-finger braking"), giving you absolute, linear control over your speed without fatiguing your hands on long, downhill descents.

Weather Adaptability

If you live in the US Pacific Northwest or anywhere with unpredictable weather, pay attention here. Mechanical cable housings are open at the ends. Over time, water, mud, and dust can get inside, causing the cable to rust, freeze in winter, or become sticky.

Hydraulic systems are completely closed and hermetically sealed. Neither dirt nor moisture can penetrate the fluid lines. Whether you are riding through a torrential downpour, snow, or a dusty trail, hydraulic brakes deliver consistent, unwavering performance.

Cost and Maintenance Requirements

Mechanical brakes are cheaper to produce, which keeps the initial cost of the e-bike down. Furthermore, you don't need specialized tools to fix them—just a standard hex wrench. However, because the brake pads wear down and the steel cable stretches, you will need to manually adjust the pad clearance every few weeks to keep them working safely.

Hydraulic brakes cost more upfront, but they are remarkably low maintenance on a day-to-day basis. The fluid system is self-adjusting; as the brake pads wear thinner, the pistons automatically sit closer to the rotor, keeping your lever feel exactly the same. Your only real maintenance is a "fluid bleed" (replacing the oil) once every one to two years, which you can have done at any local bike shop.

🔗 Deep Dive: Need to swap out worn pads? Follow our step-by-step tutorial: Replacing Bike Brake Pads: The Ultimate DIY Guide

5. How to Choose Between the Two?

Selecting the right brake system boils down to your riding environment, your budget, and the type of e-bike you are riding.

When to Choose Mechanical Disc Brakes

If you are purchasing a lightweight, entry-level commuter e-bike (Class 1) for under $1,000, mechanical brakes are perfectly adequate. They are ideal if you live in a flat area, ride mostly in dry weather on paved bike paths, and consider yourself a DIY tinkerer who doesn't mind occasionally adjusting cables in your garage.

When to Choose Hydraulic Brakes

If you are riding anything heavier, faster, or more rugged, hydraulics are a must. You should absolutely opt for hydraulic brakes if:

• You ride a heavy Cargo E-bike or a high-speed Class 3 commuter.

• You frequently navigate steep hills, mountain trails, or heavy city traffic where emergency stopping is crucial.

• You ride year-round in rain, snow, or mud.

• You have smaller hands or weaker grip strength (the one-finger braking is a game changer).

• You want a premium, "set-it-and-forget-it" maintenance experience.

(Note: For our riders seeking maximum safety, PUJH highly recommends checking out our long-range commuter and eMTB series, all of which come standard with high-performance hydraulic setups).

6. The Hidden Variables of Braking Distance

Beyond the mechanical vs hydraulic disc brakes debate, your actual stopping distance depends on a matrix of internal components and external conditions.

• Brake Pad Compounds: Resin (organic) pads are quieter and offer great initial bite but wear out quickly on heavy e-bikes. Metallic (sintered) pads are louder but handle extreme heat brilliantly and last significantly longer.

• Rotor Sizing and Heat Dissipation: Larger rotors give the caliper more mechanical leverage and provide more surface area to shed heat. Heavy-duty e-bikes should always be specced with 180mm or 203mm rotors to prevent brake fade.

• Payload and Gravity: An e-bike's base weight plus your body weight and any cargo creates massive forward momentum. The heavier your payload, the more aggressive your braking system needs to be.

• Speed: Braking distance increases exponentially with speed. Stopping a Class 3 e-bike traveling at 28 mph requires substantially more force than stopping one at 15 mph.

• Terrain and Weather Conditions: Steep downhill grades (like San Francisco hills or rocky mountain trails) shift your center of gravity forward, demanding sustained braking torque. Furthermore, wet and slippery road surfaces during rain or snow also significantly reduce tire grip., extending your stopping distance regardless of how powerful your brake calipers are.

7. Conclusion: Making the Right Choice

When analyzing mechanical vs hydraulic disc brakes, the conclusion is clear. While mechanical disc brakes have served the cycling world well and remain a viable option for budget-conscious, fair-weather riders on flat terrain, they are rapidly being outpaced by the demands of modern e-bikes.

Because electric bikes are heavier and capable of sustained higher speeds, hydraulic brakes are an undeniable necessity for anyone prioritizing safety, comfort, and reliability. The effortless lever feel, the all-weather durability, and the immense, fade-free stopping power make them the ultimate choice for US riders. At PUJH, we believe you shouldn't have to compromise on safety, which is why we continuously push to integrate advanced hydraulic systems across our fleet. When you twist the throttle, you need absolute certainty that you can stop on a dime.

8. FAQ

Q1: Can I upgrade from mechanical disc brakes to hydraulic brakes on my e-bike? Yes, mostly! If your e-bike frame has standard mounting points (IS or Post Mount), the physical calipers will fit. However, you must ensure you purchase hydraulic levers that include the specific "motor cutoff sensors" required by e-bikes. Without these sensors, your motor might keep pushing while you are trying to brake.

Q2: How often do I need to bleed my hydraulic brakes? For the average daily commuter, getting a fluid bleed once every 1 to 2 years (or roughly every 1,500 to 2,000 miles) is sufficient. If your brake lever ever starts feeling "spongy" or pulls all the way to the grip before engaging, it's time for a bleed.

Q3: Are mechanical disc brakes safe to use in the rain? Yes, they are considerably safer and more effective in wet weather than old-school rim brakes. The disc rotor sits higher up from the puddles. However, hydraulic systems still outperform them in extreme wet conditions because the fluid lines are completely sealed against water intrusion, whereas water can eventually seep into mechanical brake cables.
