Unlock the Beast: Tuning Your 60V E-Bike Controller for Max Performance

Most average cyclists accept the factory default settings after purchasing an electric mountain bike. They tolerate the factory speed limit, sluggish throttle response, and a speedometer display that always has a few mph error.

However, if you are a seasoned mountain bike enthusiast seeking ultimate performance, tolerating these default factory settings is unacceptable.

Take a high-performance electric mountain bike like the PUJH PU366. This isn't your average electric bike; it is a lightweight, off-road EV built on a robust 60V architecture. Armed with a dual-motor system (1500W x 2), it delivers a sustained 3000W of power and peaks near 6000W when accounting for phase amp spikes under heavy load. Despite the electric bicycle's excellent hardware performance, it is bound by the US Level 3 electric bicycle regulations, which necessitate setting conservative power parameters at the factory.



To truly unleash that power—or dynamically dial it back for maximum traction on technical singletrack—you need to speak the language of its motor controller. In this guide, we will break down the electrical dynamics of a 60V system and walk you through calibrating the PUJH PU366’s hidden P-Settings so you can customize your throttle response, voltage cutoffs, and overall ride profile to enhance your riding experience.

(New to AWD electric mountain bikes? Check out our The Ultimate Guide to Electric Mountain Bikes: 60V Power, Tuning & Maintenance  to get up to speed on the hardware basics before diving into the software.)

1. Pushing Physical Limits: Why a 60V Architecture Dominates E-Bike Performance

Before we dive into software tuning, we have to talk about the hardware backbone. Why the PUJH PU366 high-performance mountain bikes abandon the industry-standard 48V setup in favor of a robust 60V system?

The answer comes down to foundational physics—specifically, Ohm’s Law and your motor’s Kv rating (RPM per Volt).

To hit a peak output of 6000W, a standard 48V system is forced to push a massive125 Amps of current (6000W / 48V = 125A). High current is the enemy of sustained performance because it generates immense heat. In electrical engineering, this is known as I²×R heat loss. According to the heat loss formula, we know that the heat generated is proportional to the square of the current. The Joule heat corresponding to high current will quickly burn out the motor coil and put pressure on the controller.

 On steep, sustained hill climbs, this inevitably triggers "thermal throttling," abruptly cutting your power to prevent a meltdown. Here is exactly how the PU366’s 60V architecture solves this and changes the game:

• Massive Heat Reduction: By stepping up to 60V, the current required to deliver that same 6000W of power drops to just 100 Amps. That 20% drop in amperage translates to a massive 36% reduction in I²×R heat losses. Less heat means zero thermal throttling and consistent, sustained peak power when you need it most.
• Higher Top Speeds: A brushless DC motor’s RPM scales directly with voltage based on its Kv rating. This higher-voltage foundation is the mechanical secret behind how the PU366 shatters conventional e-bike limits, allowing the motor to spin faster and effortlessly hit top speeds of 42 to 45 mph.

Ultimately, when you are piloting an 88-pound, heavy-duty chassis stretching 76.8 inches long at highway speeds, raw horsepower isn't enough. You need the granular, highly efficient electronic control that only a high-voltage system can provide to manage that momentum safely and reliably.

2. Unlocking the PU366: Navigating Advanced LCD P-Settings

The multi-color LCD display on the PU366 serves as more than just a standard dashboard—it is your direct interface to the e-bike's motor controller. Accessing the advanced configuration menu allows you to fine-tune the bike's performance parameters to your specific riding environment.

To enter the programming interface, power on the bike and hold the "+" and "-" buttons simultaneously for approximately three seconds. Once the screen flashes and displays "P01", you can use the power button to cycle through the parameters and the "+" or "-" keys to adjust their values.

P08 Parameter: Adjusting the Electronic Speed Governor

This is arguably the most sought-after setting for performance enthusiasts. Factory e-bikes are electronically governed to comply with federal and state regulations. Modifying this parameter directly alters the firmware's top-speed cap.

• Values 25 and 32 (restricted): Maintains strict Class 3 e-bike compliance. This setting applies only to two specific speed limits: 32 and 25. When the value is 32, the maximum speed limit is 32 km/h (≈20 mph), and when the value is 25, the maximum speed limit is 25 km/h (≈16 mph). If you use the PU366 for urban commuting, leaving the governor here ensures you remain street-legal and battery-efficient. (For city riding strategies, check out our 100-Mile Commuter Guide).

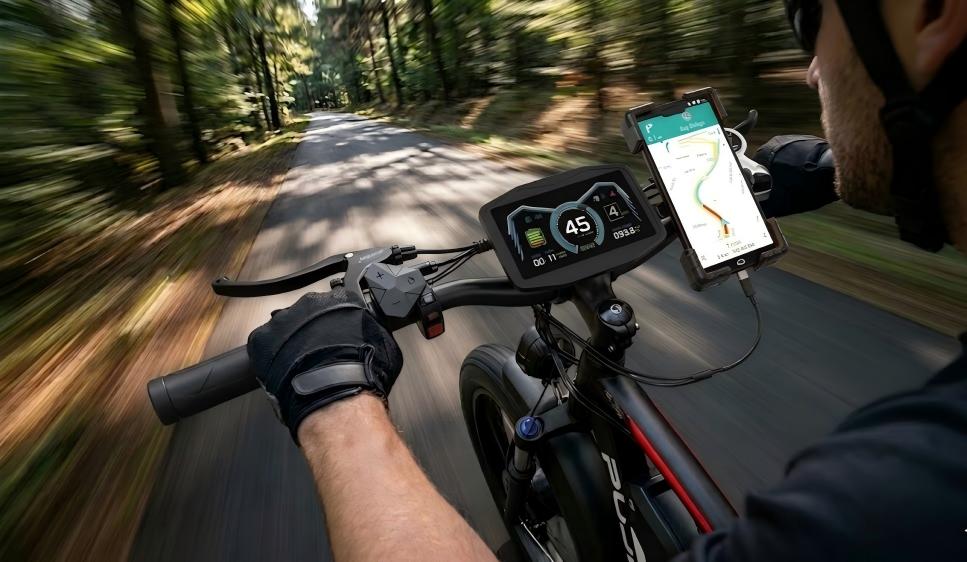

• Value 33-100 (Unrestricted): Bypasses the electronic speed governor entirely. Setting this to 33-100 opens up the controller, allowing the 60V dual-motor system to reach its peak RPM and push top speeds to roughly 45 mph. Disclaimer: This configuration is strictly for use on private property or designated Off-Highway Vehicle (OHV) trails.

Torque Management and Throttle Mapping: P09, P11, and P12

Sending 200 Nm of peak torque to the dirt without proper modulation is a quick way to induce wheelspin or "loop" the bike. Fine-tuning the following parameters allows you to map the power delivery curve to match your skill level and terrain.

• P09 (Start Mode): Dictates how the throttle engages. Selecting Zero Start provides immediate throttle response from a dead stop. Selecting Non-Zero Start requires you to pedal to a rolling speed before the throttle goes live. For newer riders or those navigating dense traffic, Non-Zero Start is a vital safety protocol to prevent accidental launches ("whiskey throttle").
• P11 (Pedal Assist Sensitivity): Ranging from 1 to 24, this dictates the cadence sensor's reaction time. A low setting triggers the motor almost instantly upon pedaling—ideal for quick bursts of power on technical off-road climbs. A high setting creates a delayed, smoother engagement, which is much better for paved roads and predictable handling.
• P12 (Initial Start Strength): Ranging from 1 to 5, this limits the phase current delivered during initial acceleration. Level 5 dumps maximum amperage for a highly aggressive, high-torque launch. Level 1 restricts the initial current, providing a gentle, battery-saving acceleration curve that preserves your drivetrain

3. Pro-Level Calibration: Dialing in Wheel Diameter and Motor Magnets

When you are pushing high speeds, relying on inaccurate telemetry isn't just annoying—it is potentially dangerous. The PU366 display moves beyond basic presets, offering granular, system-level calibration to ensure your dashboard data is dead accurate.

P06: Precision Wheel Diameter Calibration

A stock 26x4.0-inch fat tire does not have a static rolling circumference. When inflated to 25 PSI for street riding, it has a significantly taller rollout than when dropped to 10 PSI for snow or sand due to tire squat.

• The Fix: Parameter P06 allows you to adjust the programmed wheel diameter down to 0.1-inch increments to compensate for this dynamic rollout.
• Pro Tip: If your e-bike suffers from a "happy speedometer" (reading artificially fast), mount your smartphone, launch a reliable GPS app, and ride at a steady cruise. Incrementally drop your P06 value until your LCD telemetry perfectly matches your GPS ground truth.

P07: Motor Magnet Pole Count (Future-Proofing)

This setting is strictly the domain of hardcore DIY builders and tinkerers. Parameter P07 tells the controller exactly how many magnetic poles (adjustable from 1 to 100) are inside the motor stator.

Why does this matter? Your controller relies on hall sensor ticks to calculate speed and apply power. If you ever upgrade your bike by swapping the stock hub motor for an aftermarket unit with a different internal gear reduction ratio or magnet count, you won't need a new controller. Simply calculate the new pole count, input it into P07, and the PU366 will instantly adapt to the new hardware.

P21: Ambient Light Sensor Integration

The PU366 isn't just about motor parameters; it also houses a built-in ambient light sensor. By enabling option 1 in Parameter P21, you activate the bike’s auto-headlight feature. Whether you are blasting into a dark tunnel or riding deep into the dusk, the system will automatically ignite your headlight . It is a seamless fusion of tech and safety that keeps your hands on the grips and your focus on the trail.

5. DIY Trailside Troubleshooting: Decoding PU366 Error Codes

There is a unique satisfaction in handling your own e-bike maintenance. While the complimentary spare inner tube and brake pads included with your PU366 are lifesavers for routine mechanical wear, tackling electrical gremlins requires a different approach.

The PU366’s smart display acts as your onboard diagnostic (OBD) system. It actively monitors the powertrain's health and throws specific error codes if it detects an anomaly. If you want to wrench like a pro and avoid unnecessary trips to the local bike shop, here is how to decode and diagnose the three most common electrical faults:

• Error 07 (Motor Phase Fault): High-speed runs and violent trail vibrations can sometimes cause the motor wiring plugs to become loose or the motor to be damaged during bumpy rides. This code almost always indicates a communication drop between the controller and the motor.
  • The Fix: Inspect the heavy-duty quick-disconnect plug (typically a HIGO connector) located near the rear hub motor. Make sure the alignment arrows match up perfectly and the plug is seated flush. A loose connection disrupts the phase wires, triggering this failsafe.
• Error 08 (Throttle Hall Sensor Fault): The PU366 features an IP54-rated waterproof throttle, making it highly resilient against rain and mud. However, if you take a hard spill on the trail, the physical impact can damage the internal Hall-effect sensor—the crucial component that relies on magnets to translate your thumb movement into voltage.
  • The Fix: Inspect the throttle casing for physical cracks and ensure the wiring isn't pinched. If the internal sensor is physically damaged from a crash, the system will disable the throttle for safety, and you'll need a simple plug-and-play replacement.
• Error 09 (Controller Fault / Thermal Throttling): If this code pops up on a hot day, it typically means the controller’s thermal protection protocol has kicked in. Pushing the bike through sustained, extreme-load climbs draws maximum continuous amps, which generates excess heat in the controller's internal MOSFETs.
  • The Fix: Don’t panic—the bike is just protecting its own circuitry from frying. Simply power off the display, park the bike in the shade, and let the controller housing cool down ambiently for 15 to 20 minutes before hitting the trail again.

Conclusion: Mastering Your 60V E-Bike Architecture

Understanding your e-bike’s 60V architecture and fine-tuning the LCD P-settings completely transforms your riding dynamics. You are no longer restricted by conservative factory defaults,you are actively managing power delivery. Whether your goal is sustaining that 45 mph top speed on private stretches or dialing in a smoother low-end torque curve for technical off-road trails, the PU366 high-performance mountain electric bicycles controller is engineered to respond precisely to your inputs.

Therefore, pushing a high-performance electric bike to its limits requires a non-negotiable commitment to safety. Kinetic energy scales dramatically at 45 mph, meaning your stopping power must always outpace your motor output.

Before your next high-speed run, ensure you:

• Inspect your braking system: Regularly check your hydraulic disc brakes for proper fluid pressure and verify that your electronic motor cut-off switches engage instantly upon lever pull. Overcome anxiety while hunting, navigate the depths of the forest with ease, and understand why the PU366 is the best hunting partner.
• Optimize for payload: If you are a larger rider managing higher kinetic dynamics, check out our Heavy-Duty E-Bike Tuning Guide to learn how to properly dial in your suspension sag and select the right brake pad compounds for maximum safety.

Gear up with a DOT-certified helmet, hold down those two interface buttons to save your parameters, and experience what your machine was truly built to do.
