DIY Bicycle Brake Pads Replacement: How to Choose Your Ebike Brake Pads & Master Replacing Bike Brake Pads

There is a harsh reality every new electric bike owner eventually faces: your ebike brake pads are going to wear out much faster than you think.

Because the braking system of a Class 3 electric bicycle weighing over 80 pounds and traveling at 28 miles per hour absorbs kinetic energy exponentially. This energy is converted into extremely high levels of heat and friction, which severely wears down your brake pads.

Many cyclists would rather spend $50 to $100 on labor to replace bike brake pads at their local bike shop, even though it's a simple 15-minute job. But with the right knowledge, replacing bicycle brake pads can actually be a very rewarding and cost-effective DIY project.

As part of a comprehensive guide to electric bicycle braking, we are going to teach you the exact, step-by-step professional method for replacing bike brake pads safely in your own garage. We will cover how to diagnose wear, the critical difference between pad compounds, and the "secret" bedding-in process that guarantees maximum stopping power.

1. Diagnosing the Danger: When Do You Need a Bicycle Brake Pads Replacement?

Before replacing brake pads on an electric bicycle, you must first learn how to read caliper readings.

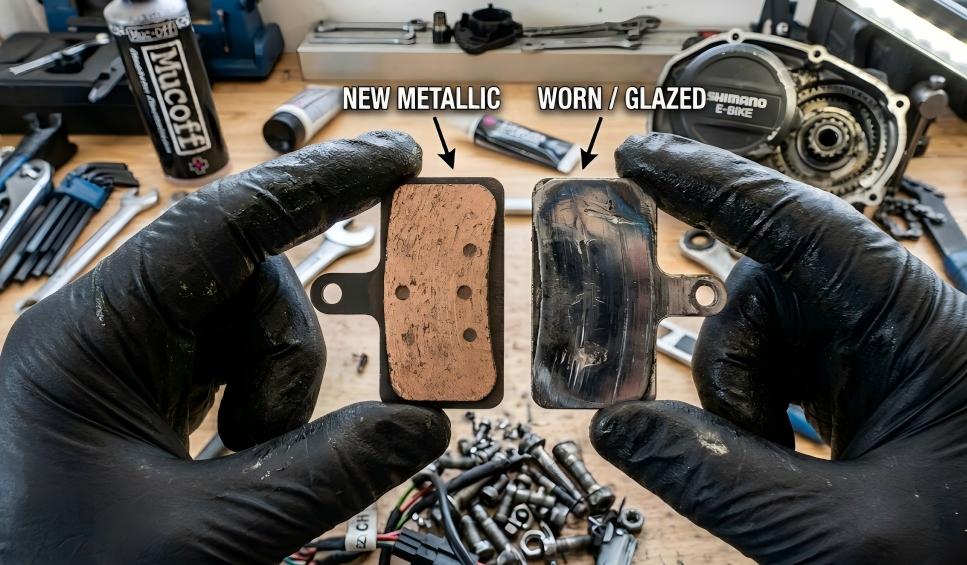

The 1.5mm Thickness Rule

The industry standard for safety is visual inspection. Grab a flashlight and look down into the top slot of your brake caliper. You will see the steel rotor sandwiched between two brake pads. Look specifically at the "friction material" (the compound glued to the metal backing plate). If that friction material is thinner than 1.5mm (roughly the thickness of a US dime), it is time for an immediate replacement.

Auditory and Physical Cues

If you cannot easily see the pads, your bike will tell you when it is suffering.

• The Metallic Grind: If you hear a harsh, metal-on-metal grinding noise when you stop, your friction material is entirely gone. The steel backing plate is now gouging your rotor. Stop riding immediately.

• Loss of Bite: If your brake levers feel "spongy" or pull all the way to the handlebar grips despite a recent fluid bleed or cable adjustment, severely thinned pads are the likely culprit.

⚠️ Mechanic's Warning: If you hear a high-pitched squeal rather than a grind, your pads might not be worn out; they might be contaminated with oil or road grime. Before replacing them, read our diagnostic guide on How to Fix Squeaky Bike Brakes and Stop Rotor Noise

2. Choosing Your Ebike Brake Pads: Resin vs. Metallic (Sintered)

Not all ebike brake pads are created equal. Buying the wrong compound for your riding style can lead to terrifying brake fade on steep hills. When purchasing replacements, you must match the pad shape to your specific caliper brand (e.g., Shimano, Tektro, SRAM), and then choose your compound.

Resin (Organic) Pads

Resin pads are made of non-metallic fibers (like rubber, glass, or Kevlar) bound together with a high-strength resin.

• The Pros: They offer excellent initial "bite," are incredibly quiet, and bed-in very quickly. They are ideal for lighter commuters or coastal riders traversing flat terrain (like the PUJH  PU149  Series ).

• The Cons: They wear out rapidly under heavy loads and lose their stopping power (glaze over) when subjected to the extreme heat of long downhill descents.

Sintered (Metallic) Pads

Sintered pads are manufactured by fusing metallic particles (copper, steel, bronze) together under immense heat and pressure.

• The Pros: These are mandatory for heavy-duty electric bikes, off-road electric bicycles, and all terrain e-bike (like the PUJH PU366 Series ). They boast unmatched heat tolerance, perform flawlessly in wet/muddy conditions, and last significantly longer than resin.

• The Cons: They take longer to bed in, can be noisy when wet, and lack the soft, quiet modulation of resin pads.

(If you are running a heavy Class 3 e-bike, always upgrade to Sintered Metallic pads for your safety).

3. The DIY Toolkit: What You Need

You do not need an entire mechanic's shop for a bicycle brake pads replacement. Gather these items before starting:

• Metric Allen wrench set (usually 4mm and 5mm)

• Needle-nose pliers

• A plastic tire lever (or a dedicated brake piston press)

• Clean microfiber rags or paper towels

• 90%+ Isopropyl alcohol (or dedicated bicycle disc brake cleaner)

• Black nitrile gloves (Crucial: the oils from your bare skin can permanently contaminate new brake pads)

4. Step-by-Step Guide to Replacing Bike Brake Pads

Note: This process applies to both front and rear wheels. However, the rear wheel on an e-bike requires extra care due to the motor.

Step 0: The Golden Rule of E-Bike Maintenance

Before touching any metal tools to your bike, turn off the LCD display and remove the battery from the frame. E-bike brake levers have motor cut-off sensors, but if you accidentally bump the throttle while your fingers are near the rotor, the high-torque motor could cause severe injury.

Step 1: Managing the Hub Motor and Wheel Removal

While you can swap pads with the wheel on, removing it prevents accidental oil contamination on your rotor.

• Shift your rear derailleur to the smallest, hardest gear.

• The Hub Motor Disconnect: If working on the rear wheel, locate the thick motor cable running along the chainstay. Carefully unplug the waterproof connector. Snipping the zip ties holding it in place may be necessary.

• Take note of the Torque Washers/Arms on the axle. These heavy metal brackets prevent the high-torque motor from ripping the axle out of the frame. Loosen the axle nuts and carefully drop the wheel.

Step 2: Extracting the Dead Pads

Look down into the top of the caliper. The ebike brake pads are held in by a retaining pin.

• If it is a cotter pin, use your pliers to bend the end straight, then pull it out. If it is a threaded bolt, use a 3mm Allen wrench to unscrew it.

• Pinch the top tabs of the old brake pads and pull them straight up. They will emerge as a sandwich with a metal spring clip in the middle.

Step 3: Pushing the Pistons (The Most Common DIY Mistake)

As your old pads wore down, the hydraulic pistons inside your caliper slowly advanced outward to compensate. If you try to jam thick, brand-new pads in now, they won't fit.

• Take your plastic tire lever and place it inside the empty caliper.

• Gently but firmly push the circular ceramic pistons entirely flush with the caliper wall. Never use a metal screwdriver, as you can easily chip the fragile pistons and destroy the entire hydraulic system.

• Once flush, use a rag soaked in isopropyl alcohol to clean out the abrasive brake dust inside the caliper housing.

Step 4: Installing the Fresh Hardware

• Put on fresh nitrile gloves. Never touch the friction surface of the new pads with bare skin, as skin oils will permanently ruin the compound.

• Sandwich the new metal spring clip between your fresh pads.

• Slide the assembly down into the caliper. Insert your retaining pin or bolt, ensuring you bend the cotter pin back so it cannot vibrate loose at 28 mph.

Step 5: Wheel Reinstallation and Alignment

• Carefully remount the wheel, ensuring the steel rotor slides cleanly between the tight gap of the new pads.

• Realign your torque washers perfectly into the frame dropouts.

• Use your torque wrench to tighten the rear axle nuts to the manufacturer's spec (typically a massive 40-45 Nm for hub motors).

• Reconnect your motor cable securely.

• Pump the brake lever 4-5 times. It will feel loose at first as the pistons advance, but will quickly become rock solid.

🔧 Alignment Check: Spin the wheel. Hear a rubbing sound? Don't stress. Learn how to quickly center your caliper in our guide: How to Adjust Bike Brakes and Tighten Cables

5. The Final Requirement: Bedding-In the Pads

Your bicycle brake pads replacement is not complete in the garage. If you skip this final step, your brand-new brakes will screech terribly and offer zero stopping power. You must "bed-in" the pads.

Bedding-in is the thermal process of melting a microscopic, even layer of the pad's friction material onto the steel rotor.

The Professional Bed-In Protocol:

1. Find a safe, flat, empty stretch of pavement.

2. Accelerate the e-bike up to 15 mph.

3. Sit heavily in the saddle and pull only the front brake firmly and evenly, slowing the bike down to a walking pace.

4. CRITICAL: Do not come to a complete stop! Releasing a hot brake pad while completely stationary will leave an uneven chunk of material on the rotor, causing permanent shuddering.

5. Repeat this controlled deceleration 10 to 15 times for the front brake. You will physically feel the bite power increase with each pass.

6. Repeat the exact same process using only the rear brake.

Conclusion: Take Control of Your Machine

Mastering the process of replacing bike brake pads elevates you from a passive consumer to a true e-bike pilot. By respecting the electrical components, pushing your pistons properly, and meticulously bedding in your new ebike brake pads, you guarantee that your heavy-duty machine will perform safely in the most chaotic urban environments.

Keep a spare set of pads in your toolbox, monitor your wear levels constantly, and ride with the absolute confidence that your stopping power is tuned to perfection.

📚 Deepen Your Engineering Knowledge: Are you curious why hydraulic systems offer so much more leverage than cables? Dive into the physics of deceleration in our comprehensive comparison: Mechanical vs Hydraulic Disc Brakes: Why You Need Hydraulic Bike Brakes

Frequently Asked Questions (FAQ)

Q: Can I use automotive brake cleaner when changing ebike brake pads?

A: Absolutely not. Automotive cleaners contain harsh solvents designed for massive cast-iron calipers. These chemicals will melt the delicate rubber O-rings inside your e-bike's hydraulic calipers, causing catastrophic fluid leaks. Always use 90%+ isopropyl alcohol or a dedicated bicycle disc brake cleaner.

Q: Why is my brake lever still spongy after replacing bike brake pads?

A: If you pushed the pistons back, installed new pads, and pumped the lever, but it still pulls all the way to the handlebar, your issue isn't the pads. You have air trapped inside your sealed hydraulic lines. You will need to take the bike to a shop for a professional "hydraulic fluid bleed" to restore the pressure.

Q: Is it normal for new metallic pads to make a scraping noise on the first ride?

A: Yes. Sintered metallic pads are extremely hard and take significantly longer to bed-in than soft resin pads. A slight metallic scraping sound is normal during the first 10-20 miles of riding as the pads match the microscopic grooves of your steel rotor. If the noise persists into a loud squeal, your rotor may be contaminated with oil.
