Expert Electric Bike Battery Guide: Decoding Specs, Real-World Range, and UL Safety
Whether you are trying to conquer the notoriously steep hills of San Francisco, eliminate commuter sweat in humid Florida, or simply want to know why your range suddenly drops during a freezing Chicago winter, understanding your electric bike battery is crucial.
We’ve seen countless riders replace their batteries years earlier than necessary simply due to a lack of basic maintenance. In this comprehensive guide, we are pulling back the curtain on everything you need to know about your ebike battery. From demystifying complex specs to sharing our insider lab tips on doubling your battery's lifespan, we are here to help you ride further, safer, and smarter.
Recommended PUJH E-Bikes for Maximum Range
If you want to put our advanced lithium-ion battery technology to the test, start with these top-tier PUJH models. Each e-bike is equipped with high-capacity and high-density lithium-ion battery packs designed for optimal safety, intelligent BMS balancing, and uncompromising real-world range.
PUJH PU366
Best for rough trails and extended rides, powered by a high-capacity 60V system that delivers ultimate torque and sustained stamina.
- 60V 20Ah Premium Battery
- Up to 100 Miles (1200Wh) Range
- UL 2849 System Certified
- Smart BMS Battery Protection
PUJH PU364
Compact control with a highly efficient 48V setup, delivering reliable daily commuting power and excellent charge cycle longevity.
- 60V 20Ah (1200Wh) System
- Up to 100 Miles Range
- Easily Removable Pack
- 20%-80% Fast Charging

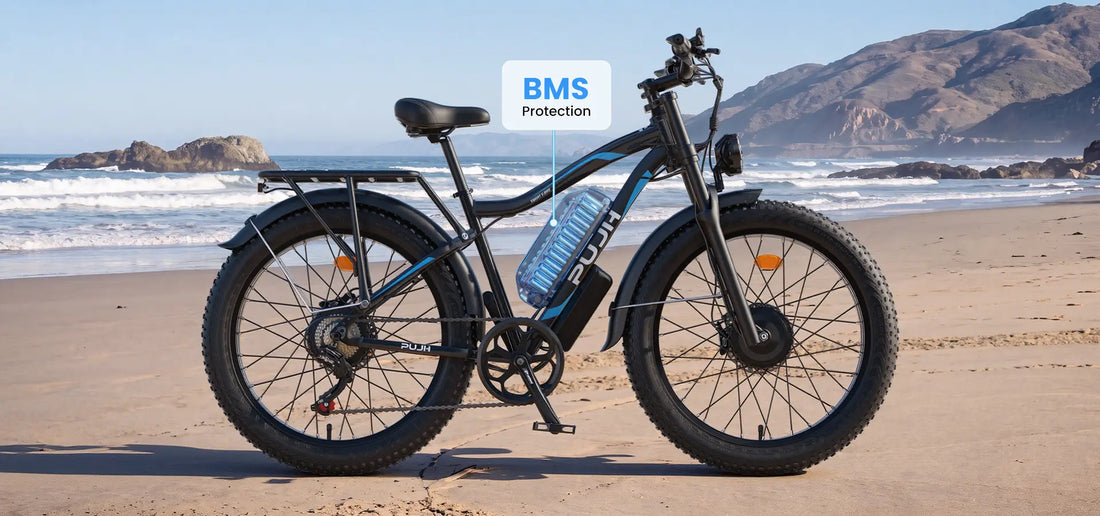

PUJH PU266
Perfectly balanced for mixed terrains with a versatile, weather-sealed battery setup designed for consistent power delivery.
- 60V 20Ah High-Density Cells
- Up to 40-100 Miles Range
- IP54 Water & Dust Resistant
- Removable Battery
PUJH PU354
Designed for epic adventures and utility riding, featuring our largest battery setup for unprecedented mileage without range anxiety.
- Dual 48V Battery Compatible
- Up to 100+ Miles True Range
- Advanced Thermal Protection
- Cold-Weather Optimized
Understanding E-Bike Battery Specs: Voltage, Amp-Hours, and Watt-Hours
In fact, electric bike battery are not as complicated as most people imagine. Understanding three basic terms regarding e-bike batteries is all you need. Think of your battery system like plumbing:
-
Voltage (V) - The "Water Pressure": Voltage dictates how much power the battery can push to the motor at any given second. A higher voltage (like 48V or 52V) pushes power faster than a 36V system. If you are a heavier rider or regularly tackle steep inclines, higher voltage gives you the "oomph" and acceleration you need.
-
Amp-Hours (Ah) - The "Gas Tank": This measures capacity. A 15Ah battery simply holds more "fuel" than a 10Ah battery. All else being equal, a higher Ah rating means you can ride longer before running dry.
-
Watt-Hours (Wh) - The Ultimate Metric: If you only look at one spec on an electric bicycle battery, make it the Watt-Hours. It represents the total energy inside the pack. You can calculate it using this simple formula:
Volts × Amp-Hours = Watt-Hours (Wh)
For example, a PUJH 60V 20Ah battery（Represented by the PUJH PU366） delivers 1200Wh of total energy. When comparing two bikes across different brands, the one with the higher Wh will almost always offer a longer true range.
E-Bike Battery Chemistries: Which One Is Right for You?
Not all batteries are created equal. The chemical makeup inside those plastic casings dictates the weight, lifespan, and overall safety of your ride. Here is what you will find on the US market:
-
Lead-Acid: Heavy, clunky, and largely outdated. They only survive about 300 charge cycles before dying. You will mostly find these on very cheap, heavy tricycles or kids' ride-on toys.
-
Lithium Iron Phosphate (LiFePO4): Incredibly durable and safe, boasting over 2,000 charge cycles. However, they are heavy and have a lower energy density, making them better suited for massive commercial cargo bikes rather than nimble city commuters.
-
Lithium-Ion (Li-ion): The undisputed king of the modern e-bike industry. Lithium-ion batteries offer the highest energy density, meaning maximum range for minimal weight. This is the gold standard for all PUJH e-bikes.
Industry Insight: Keep an eye out for Solid-State batteries. This emerging technology replaces liquid electrolytes with a solid material, promising zero fire risks and potentially doubling the range. While not mainstream yet, it's the future of electric bike and electric car.
Chemistry Comparison Table
| Chemistry Type | Energy Density | Average Lifespan | Weight | Best Suited For |
|---|---|---|---|---|
| Lead-Acid | Low | 300 - 500 Cycles | Very Heavy | Budget/Disposable rides |
| LiFePO4 | Medium | 2,000+ Cycles | Heavy | Heavy-duty cargo bikes |
| Lithium-Ion | High | 800 - 1,000 Cycles | Light | Modern commuters & eMTBs |
How Far Can an E-Bike Really Go on a Single Charge?
If you have ever been disappointed because an e-bike's actual range fell short of the "up to xx miles" advertised by the seller, this is, to some extent, a common occurrence. Lab claims are notoriously optimistic. In test facilities, range is measured with a 150 lb rider, perfectly flat ground, perfectly inflated tires, zero wind, and exclusively using the lowest pedal-assist (PAS) level.
Real-World Variables vs. Lab Claims
In real-world driving, the range will be somewhat shorter than you might expect. After all, using the throttle consumes far more power than riding in Level 1 pedal-assist mode. Factors like a 200 lb rider weight, carrying groceries, under-inflated tires (even by 5 PSI), headwinds, and stop-and-go city traffic can easily cut your maximum range by 15% to 20%.
The Impact of Ambient Temperature
If you plan to ride during the winter as well, note that lithium-ion cells hate the cold. When temperatures drop below 32°F, the internal chemical reactions become sluggish. In our PUJH winter testing, we consistently observe a 20% to 35% reduction in range during freezing weather. The good news? No permanent damage is done. Your full capacity returns once spring arrives.
Battery Range Estimator
Based on real-world testing (mixed PAS usage, average hills, 175 lb rider), here is what you can actually expect from your e bike battery:
-
300Wh – 400Wh: 15 to 25 miles
-
400Wh – 600Wh: 25 to 40 miles
-
900Wh – 1200Wh (PUJH Standard): 40 to 80+ miles
How to Maximize Your E-Bike Battery Lifespan
Want to delay buying a $500 replacement battery for as long as possible? Treat it right. Follow these golden rules of battery maintenance to stretch its life across thousands of miles.
The 20%–80% Rule for Daily Charging
Here is a secret: you don't need to charge your battery to 100% every single day. Keeping your charge level between 20% and 80% drastically reduces stress on the internal electrodes. By avoiding deep discharges (riding it down to 0%) and avoiding over-saturation (leaving it plugged in at 100% for days), you can extend your battery's life by hundreds of cycles.
Safe Storage Practices (Off-Season & Winter Storage)
If you are putting your bike away for the winter, never store the battery completely dead or totally full.
-
Remove it from the bike.
- Charge or discharge it to roughly 50% to 60%.
-
Store it in a dry, room-temperature room (between 50°F and 68°F).
Battery Management System (BMS): The Silent Guardian
Every PUJH premium battery features a tiny brain inside called the Battery Management System (BMS). This smart circuit board prevents the battery from overcharging, monitors internal temperatures to prevent overheating, and balances the cells so they drain evenly. It’s the unsung hero that keeps you safe if you accidentally leave the charger plugged in overnight.
E-Bike Battery Safety & Fire Prevention: Crucial Standards to Know
With the media frequently highlighting lithium-ion fire hazards, battery safety is the number one concern for US consumers today. In fact, cities like New York have even banned the sale of uncertified e-bikes. Fires almost exclusively stem from cheap, knock-off batteries or reckless charging habits.
Deciphering Safety Certifications: UL 2849 vs. UL 2271
When shopping a e-bike, UL certifications are non-negotiable.
-
UL 2271: This certifies that the battery pack itself has been brutally tested for extreme drops, impacts, water resistance, and thermal runaway.
-
UL 2849: A much broader standard covering the entire electrical system (motor, battery, controller, and charger) to ensure all parts communicate without overloading.
Safe Charging Habits
-
Always use the original charger provided by the manufacturer. Cheap Amazon replacement chargers might push too much voltage and bypass the BMS protections.
-
Charge in a clear, dry space away from flammable materials.
-
Never charge unattended or while sleeping. Unplug it when the indicator light turns green.
Warning Signs of a Failing Battery
Stop using your battery immediately, move it outdoors to a safe concrete area, and contact the manufacturer if you notice:
-
The plastic housing is bulging, cracked, or swollen.
-
It emits an unusual sweet, metallic, or burning odor.
-
The battery gets excessively hot (too hot to touch safely) during charging.
-
It refuses to hold a charge or shuts off randomly during a ride.
Replacing, Upgrading, and Recycling
Eventually—usually after 3 to 5 years of regular use—your battery will naturally degrade and hold only about 70% of its original capacity. When that happens, what are your options?
Integrated vs. Removable Batteries
If your bike features a removable battery, upgrading is simple: just buy a new pack and click it in. Removable batteries also allow you to charge indoors at the office.
Integrated batteries (built directly inside the frame tube) look incredibly sleek and hide the fact you are riding an e-bike, however, the downside is that replacement is relatively difficult, usually requiring a visit to a local e-bike repair center.
How to Responsibly Recycle E-Bike Batteries
Under no circumstances should you throw a lithium-ion battery in your household trash—it is illegal in most states and highly dangerous to sanitation workers. Use US-based organizations like BatteryNetWork to find a free, safe drop-off location near you. Many local bike shops or Home Depot locations partner with them to accept dead packs.
Need a certified replacement or looking for an extra pack to double your weekend range? Shop our high standards product PUJH Electric Bike Accessories & Batteries here.
Conclusion
Understanding your e-bike battery isn't difficult. By understanding its core specs (V, Ah, Wh), adjusting your expectations for real-world range, practicing the 20/80 daily charging rule, and prioritizing UL-certified safety, you will get the absolute highest return on your investment. Treat your battery with respect, and it will provide you with thousands of miles of riding enjoyment.
Are you ready to experience the power of a finely tuned, rigorously tested e-bike? Check out our latest lineup PUJH E-Bikes and hit the road with confidence!
Frequently Asked Questions (FAQ)
Q1: How much does a replacement e bike battery cost?
A: A high-quality, UL-certified replacement battery typically costs between $300 and $600. While it sounds steep, you are paying for hundreds of premium lithium-ion cells and advanced BMS safety technology.
Q2: Can I leave my electric bicycle battery charging overnight?
A: We strongly advise against it. While a quality BMS will cut off the power when full, it is a crucial safety best practice recommended by the US Fire Administration to only charge your battery when you are awake and nearby to monitor it.
Q3: Why is my e-bike battery not charging to 100%?
A: This could be due to cell imbalance. Try leaving it on the charger for a few extra hours to let the BMS balance the cells. If it's old and still won't top off, the overall capacity has likely degraded naturally over time.
